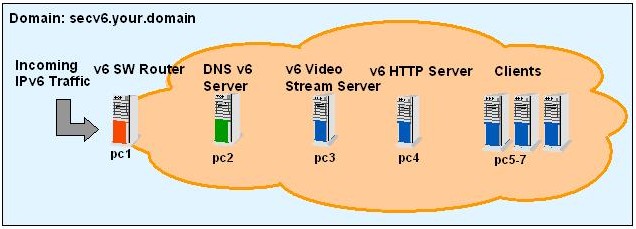

• 路由服务器 (pc1) 充当 IPv6 软件路由器服务器，并为所有 IPv6 节点提供路由器通告。

• DNS IPv6 服务器 (pc2) 提供 IPv6 名称解析。

• 两个应用服务器，一个提供视频流 (pc3)，另一个是基于 Apache 的 Web 服务器 (pc4)。

• 客户端机器 (pc5–7) 用于测试目的。

1. 主服务器：服务器具有区域数据的主副本，并为其提供权威答案。

2. 辅助服务器：辅助区域是主区域的副本。每个辅助区域都有一个主服务器列表，它可以查询这些主服务器以接收对其区域副本的更新。辅助服务器可以选择将区域副本保存在磁盘上以加快启动速度。单个主服务器可以有任意数量的辅助服务器，以分配负载。

3. 存根服务器：存根区域很像辅助区域，行为也很相似，但它仅复制主区域的 NS 记录，而不是整个区域。存根区域跟踪哪些 DNS 服务器对组织具有权威性。它们直接联系根 DNS 服务器以确定哪些服务器对哪些域具有权威性。

4. 转发服务器：转发区域将区域中的所有查询定向到其他服务器。因此，它充当网络的缓存 DNS 服务器。或者，它可以为防火墙后面的网络提供互联网 DNS 服务，防火墙限制外部 DNS 查询，但显然转发 DNS 服务器必须具有对互联网的 DNS 访问权限。这种情况类似于全局转发设施，但允许每个区域选择转发器。

列表 1. /etc/named.conf

options {
directory "/var/named";

// a caching only nameserver config
zone "." IN {
type hint;
file "named.ca";
};

// this defines the loopback name lookup
zone "localhost" IN {
type master;
file "master/localhost.zone";
allow-update { none; };
};

// this defines the loopback reverse name lookup
zone "0.0.127.in-addr.arpa" IN {
type master;
file "master/localhost.rev";
allow-update { none; };
};

// This defines the secv6 domain name lookup
// Secure (signed) zone file is
// secv6.your.domain.signed
// Regular zone file is secv6.your.domain
zone "secv6.your.domain" IN {
type master;
file "master/secv6.your.domain.signed";
// file "master/secv6.your.domain";
};

// this defines the secv6 domain reverse
// name lookup (AAAA)
zone "secv6.int" IN {
type master;
file "master/secv6.int";
};

// this defines the secv6 domain reverse
// name lookup (A6)
zone "secv6.arpa" IN {
type master;
file "master/secv6.rev";
};

// secret key truncated to fit
key "key" {
algorithm hmac-md5;
secret "HxbmAnSO0quVxcxBDjmAmjrmhgDUVFcFNcfmHC";
};

列表 2. /var/named/master/secv6.your.domain

$TTL 86400
$ORIGIN secv6.your.domain.
@ IN SOA secv6.your.domain. hostmaster.your.domain. (
2002011442 ; Serial number (yyyymmdd-num)
3H ; Refresh
15M ; Retry
1W ; Expire
1D ) ; Minimum
IN MX 10 noah.your.domain.
IN NS ns.secv6.your.domain.
$ORIGIN secv6.your.domain.
ns 1D IN AAAA fec0::1:250:b7ff:fe14:35d0
1D IN A6 0 fec0::1:250:b7ff:fe14:35d0
secv6.your.domain. 1D IN AAAA fec0::1:250:b7ff:fe14:35d0 1D IN A6 0
fec0::1:250:b7ff:fe14:35d0
pc2 1D IN AAAA fec0::1:250:b7ff:fe14:35d0  1D IN A6 0
fec0::1:250:b7ff:fe14:35d0
pc3 1D IN A6 0 fec0::1:250:b9ff:fe00:131   1D IN AAAA
fec0::1:250:b9ff:fe00:131
pc6 1D IN A6 0 fec0::1:250:b7ff:fe14:3617  1D IN AAAA
fec0::1:250:b7ff:fe14:3617
pc4 1D IN A6 0 fec0::1:250:b7ff:fe14:35c4  1D IN AAAA
fec0::1:250:b7ff:fe14:35c4
pc5 1D IN A6 0 fec0::1:250:b7ff:fe14:361b  1D IN AAAA
fec0::1:250:b7ff:fe14:361b
pc7 1D IN A6 0 fec0::1:250:b7ff:fe14:365a  1D IN AAAA
fec0::1:250:b7ff:fe14:365a
pc1 1D IN A6 0 fec0::1:250:b9ff:fe00:12e   1D IN AAAA
fec0::1:250:b9ff:fe00:12e
pc1 1D IN A6 0 fec0:0:0:1::1 1D IN AAAA fec0:0:0:1::1
$INCLUDE "/var/named/master/Ksecv6.your.domain.+003+27034.key"

列表 3. /var/named/master/localhost.zone

// localhost.zone  Allows for local communications
// using the loopback interface
$TTL 86400
$ORIGIN localhost.
@ 1D IN SOA @ root (
42 ; serial (d. adams)
3H ; refresh
15M ; retry
1W ; expire
1D ) ; minimum
1D IN NS @
1D IN A 127.0.0.1

列表 4. /var/named/master/localhost.rev

// localhost.rev  Defines reverse DNS lookup on
// loopback interface
$TTL 86400
$ORIGIN 0.0.127.in-addr.arpa.
@ IN SOA 0.0.127.in-addr.arpa. hostmaster.secv6.your.domain. (
42 ; Serial number (d. adams)
3H ; Refresh
15M ; Retry
1W ; Expire
1D ) ; Minimum
NS ns.secv6.your.domain.
MX 10 noah.ip6.your.domain.
PTR localhost.

列表 5. /var/named/master/secv6.rev

// secv6.rev  Defines reverse lookup for secv6
// domain in A6 format
$TTL 86400
$ORIGIN secv6.arpa.
@ IN SOA secv6.arpa. hostmaster.secv6.your.domain. (
2002011442 ; Serial number (yyyymmdd-num)
3H ; Refresh
15M ; Retry
1W ; Expire
1D ) ; Minimum
NS ns.secv6.your.domain.
MX 10 noah.your.domain.
; fec0:0:0:1::/64
$ORIGIN \[xfec0000000000001/64].secv6.arpa.
\[x0250b7fffe1435d0/64] 1D IN PTR pc2.secv6.your.domain.
\[x0250b9fffe000131/64] 1D IN PTR pc3.secv6.your.domain.
\[x0250b7fffe143617/64] 1D IN PTR pc6.secv6.your.domain.
\[x0250b7fffe1435c4/64] 1D IN PTR pc4.secv6.your.domain.
\[x0250b7fffe14361b/64] 1D IN PTR pc5.secv6.your.domain.
\[x0250b7fffe14365a/64] 1D IN PTR pc7.secv6.your.domain.
\[x0250b9fffe00012e/64] 1D IN PTR pc1.secv6.your.domain.

列表 6. /var/named/master/secv6.int

// secv6.int  Defines reverse lookup for secv6
// domain in AAA format
$TTL 86400
$ORIGIN secv6.int.
@ IN SOA secv6.int. hostmaster.secv6.your.domain. (
2002011442 ; Serial number (yyyymmdd-num)
3H ; Refresh
15M ; Retry
1W ; Expire
1D ) ; Minimum
NS ns.secv6.your.domain.
MX 10 noah.your.domain.
; fec0:0:0:1::/64
$ORIGIN 1.0.0.0.0.0.0.0.0.0.0.0.0.c.e.f.secv6.int.
0.d.5.3.4.1.e.f.f.f.7.b.0.5.2.0 IN PTR pc2.secv6.your.domain.
e.2.1.0.0.0.e.f.f.f.9.b.0.5.2.0 IN PTR pc1.secv6.your.domain.
1.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0 IN PTR pc1.secv6.your.domain.
1.3.1.0.0.0.e.f.f.f.9.b.0.5.2.0 IN PTR pc3.secv6.your.domain.
7.1.6.3.4.1.e.f.f.f.7.b.0.5.2.0 IN PTR pc6.secv6.your.domain.
4.c.5.3.4.1.e.f.f.f.7.b.0.5.2.0 IN PTR pc4.secv6.your.domain.
b.1.6.3.4.1.e.f.f.f.7.b.0.5.2.0 IN PTR pc5.secv6.your.domain.

列表 7. 客户端机器上的 /etc/resolv.conf

# To enable secv6 domain, start named on pc2
# and use this file as /etc/resolv.conf
search secv6.your.domain
nameserver fec0::1:250:b7ff:fe14:35d0

列表 8. A6 DNS 查询

pc2% dig 0.0.0.0 secv6.your.domain a6
; <<>> DiG 9.1.0 <<>> 0.0.0.0 secv6.your.domain A6
[...]
;secv6.your.domain. IN A6
;; ANSWER SECTION:
secv6.your.domain. 86400 IN A6 0 fec0::1:250:b7ff:fe14:35d0
;; AUTHORITY SECTION:
secv6.your.domain. 86400 IN NS ns.secv6.your.domain.
;; ADDITIONAL SECTION:
ns.secv6.your.domain. 86400 IN A6 0 fec0::1:250:b7ff:fe14:35d0
ns.secv6.your.domain. 86400 IN AAAA fec0::1:250:b7ff:fe14:35d0

列表 9. AAAA DNS 查询

pc2% dig 0.0.0.0 secv6.your.domain aaaa
; <<>> DiG 9.1.0 <<>> 0.0.0.0 secv6.your.domain AAAA
[...]
;secv6.your.domain. IN AAAA
;; ANSWER SECTION:
secv6.your.domain. 86400 IN AAAA fec0::1:250:b7ff:fe14:35d0
;; AUTHORITY SECTION:
secv6.your.domain. 86400 IN NS ns.secv6.your.domain.
;; ADDITIONAL SECTION:
ns.secv6.your.domain. 86400 IN A6 0 fec0::1:250:b7ff:fe14:35d0
ns.secv6.your.domain. 86400 IN AAAA fec0::1:250:b7ff:fe14:35d0
